Gee wiz, it’s RFID Wiz
Welcome to RFID Wiz, the easiest way to introduce RFID technology into your game, product, or production. Our one-touch technology will have you training tags and triggering relays faster than you ever thought possible.
LET’S GET TO THE BASICS
In this quick video tutorial the basics of RFID Wiz functions are explained and outlined in an easy to understand manner. Keep scrolling for written instructions on it’s usage.
what are
rfid tags?
RFID (or radio-frequency identification) tags are stickers or fobs that store a unique electronic “fingerprint.” The RFID Wiz can record this fingerprint and recognize it if it sees it again.
There are a few different “flavors” of RFID tags. The RFID Wiz works with any 13.56Mhz tag, which is the most readily available and commonly used type of tag.
how does it work?
The RFID Wiz makes training RFID tags as easy as pushing a button.
To train a tag:

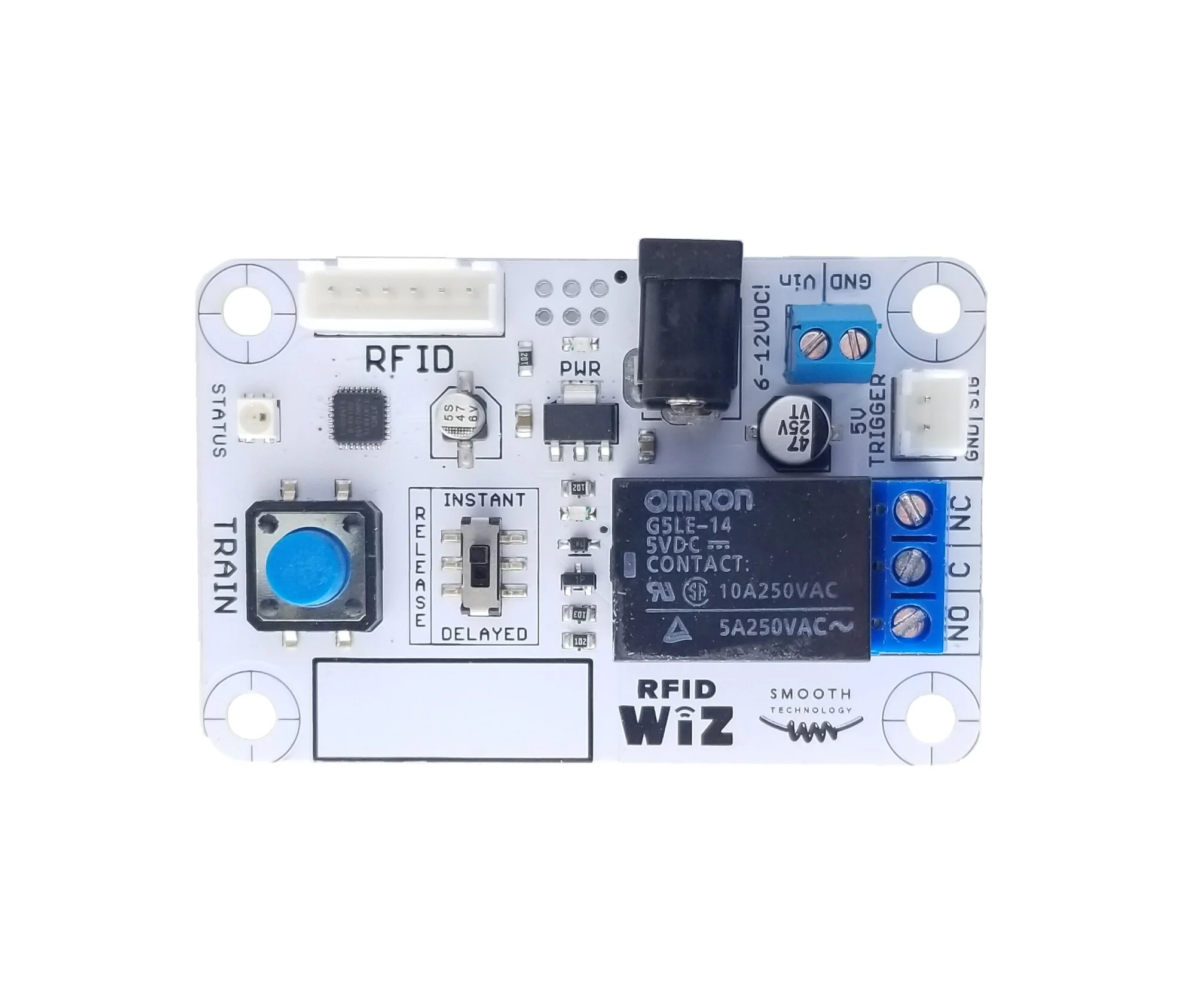

Hold your target tag against the flat side of the red RFID reader board.
Press the “Learn” button once (you’ll hear the relay click) and release.
The RFID Wiz can store up to *6* RFID tags.
To read a trained tag:
Hold the trained tag in front of the red RFID reader board. The relay will click and the relay LED will light up.
To clear all learned tags:
Press the “Learn” button five (5) times in a row.
The status LED will flash red three times. The tag memory is now erased.
toggle mode
Toggle mode will let you trigger the RFID Wiz on with one swipe, and off with another. This is useful for turning on and off lights, fans, etc.
To enter/exit TOGGLE MODE:
Press the learn button three (3) times in a row. The status LED will flash orange.
To go back to NORMAL mode, simply press 3 times again. The LED will flash green.
use cases:
Maglock (internal power supply)

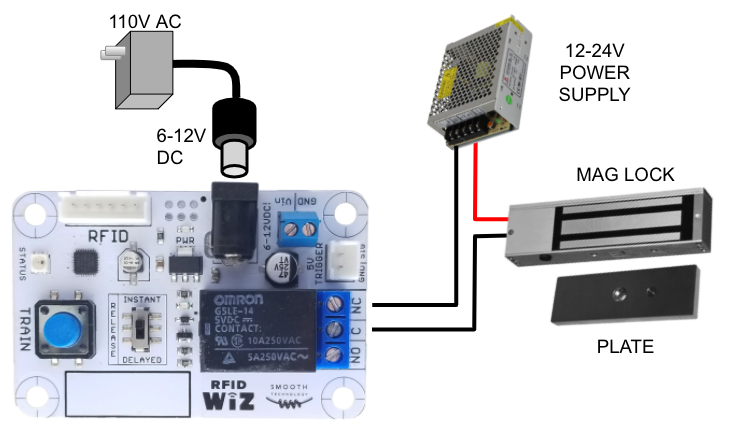

Maglock (external power supply)

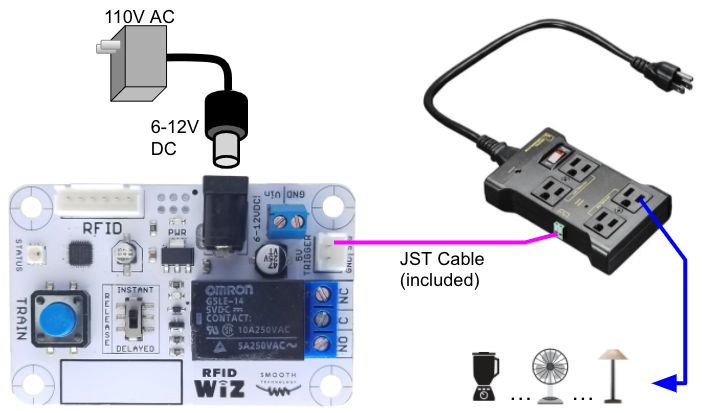

Power switch tail
IOT RELAY
The IoT Power Relay is a controllable power relay equipped with outputs that help you create projects with safe and reliable power control. This video will show you how to connect your RFID Wiz to one and explain how they work together.
Controlling Maglocks and Other Devices with RFID Wiz
This video explains how to connect your RFID WIZ to other devices. A complete wiring diagram is included for quick and easy reference!
